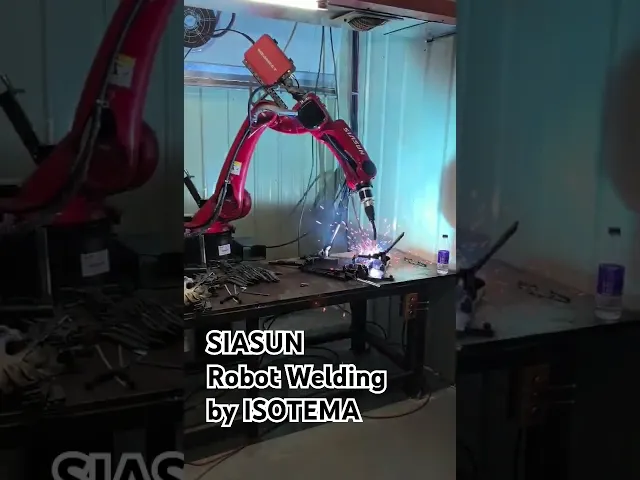

SIASUN Sheet Metal Welding Machine Set [M350]
Designed for precision and efficiency, this welding machine set is ideal for thin sheet metal applications. Perfect for detailed industrial tasks, it delivers high quality welds with reliable performance. Equipped with advanced technology to ensure accuracy and productivity.
Robot Model
Welding Machine
Description
Welding Fuction
Features:
- Aesthetically Pleasing Formation
The 110kHz high-frequency hardware system, coupled with proprietary algorithms, enables precise chopping control, significantly reducing spatter caused by liquid bridge rupture and electromagnetic repulsion. This results in a calmer weld pool and more aesthetically pleasing seam formation. - Premier Configurations
Finely crafted with a high-value combination, the robot, welding, and process systems integrate seamlessly into a trinity on an intelligent robotics platform, ensuring a stable and efficient fusion - Intelligent Control, Blending Timeless Functions
An all-digital control system enables meticulous control over the arc and droplet, stabilizing the weld pool. Equipped with soft-switching inverter technology, it guarantees high equipment reliability and energy efficiency. Furthermore, it incorporates intelligent welding software, featuring functions frequently used such as flying welding, continuous spot welding, rotational mirror translation, scheduling capabilities, and breakpoint recovery, flexibly managing production tasks - Expert Craftsmanship, Illustrating Peak Efficiency
It achieves ultra-low spatter welding on carbon steel sheets ranging from 1 to 3mm thick. Spatter is reduced by 60%, while heat input can be finely adjusted （decreased by 10%-20%）, ensuring thin sheet welding is effortlessly manageable with minimal distortion
Specification:
| Model | Dex2 350LDR | ||
| Control Mode | Digital IGBT Control Three Phase | Efficiency | 87%@350A |
| Input Volatage | AC 380 V(+-25%) | Output Characteristic | CV |
| Input Frequency | 40 ~ 70Hz | Wire Feeding Speed | 0.5~28m/min |
| Inverter Switching Frequency | 110kHz | Parameter Channel Storage | 50 sets |
| Rated Input Capacity | 13.7A/12.6KW | Working Temperature | -10°C~40°C(Welding Power Supply Can be started at -39°C) |
| No-Load Voltage | 77V | Appearence Size | L*W*H (mm) 674*291*572 |
| Rated Output Current | 350A | Weight | 40 Kg |
| Rated Output Volttage | 31.5V | Shell Protection Level | IP23 S |
| Temporary Load Rate | 100%@350A | Insulation Level | H |
| Power Factor | 0.92 | Cooling Method | Forced air cooling |
Industrial Robot
 |  | ||
| Type | SR12A12/1.46 | SR25A12/2.01 | |
| Max payload | 12kg | 12kg | |
| Repeatability | ±0.03mm | ±0.07mm | |
| Max.reach | 1465mm | 2010mm | |
| Motion Range | j1 | ±180° | ±180° |
| j2 | +90°, -170° | +90°,-165° | |
| j3 | +180°, -200°(combined) | +190°, -200° (combined) | |
| +150°, -90° (single) | +160°, -85° (single) | ||
| j4 | ±180° | ±180° | |
| j5 | +145°, -160° | +145°, -160° | |
| j6 | ±360° | ±360° | |
| Maximun Speed | j1 | 200°/s | 200°/s |
| j2 | 200°/s | 220°/s | |
| j3 | 220°/s | 220°/s | |
| j4 | 400°/s | 400°/s | |
| j5 | 430°/s | 430°/s | |
| j6 | 720°/s | 720°/s | |
| Moment | j4 | 23N.m | 23N.m |
| j5 | 20N.m | 17N.m | |
| j6 | 9N.m | 9N.m | |
| Inertia | j4 | 0.4kg.m² | 0.4kg.m² |
| j5 | 0.38kg.m² | 0.35kg.m² | |
| j6 | 0.1kg.m² | 0.1kg.m² | |
| Weight | 120kg | 250kg | |
| Protection(wrist) | IP65 | IP65 | |
| Wiring method | build-in wiring | ||
Information:
SIASUN Sheet Metal Welding Machine Set, centered around SIASUNs independently developed SR-series industrial robots, incorporates a next-generation intelligent welding control system and integrates state-of-the-art digital welding equipment. With a holistic integrated design, this system is tailored to provide you with a professional welding solution, empowering you to achieve effortless welding.
Boasting an exceptional cost-to-performance ratio and a full suite of optimized designs, this system is a choice worthy of your investment and ownership. Its high availability and robust expandability unleash the full potential of your welding processes, ensuring smooth operations and guarding your production every step of the way.
Boasting an exceptional cost-to-performance ratio and a full suite of optimized designs, this system is a choice worthy of your investment and ownership. Its high availability and robust expandability unleash the full potential of your welding processes, ensuring smooth operations and guarding your production every step of the way.
