6 Common Types of Sheet Metal Forming Processes for Manufacturing

Sheet Metal Forming Processes are of crucial significance in various industries. These processes involve bending and shaping flat materials of a certain thickness into functional forms that are widely utilized in manufacturing and construction. Understanding the different sheet metal forming processes helps engineers and designers choose the most appropriate method for each project.

Opting for the right Sheet Metal Forming Process enhances production efficiency and leads to the creation of high-quality products. In this blog, we will focus on the following commonly used Sheet Metal Forming Processes, examining their importance and relevance for metallurgical professionals and designers.

Table of Contents
Forming Type 1: Bending
Forming Type 2: Stamping
Forming Type 3: Curling
Forming Type 4: Spinning
Forming Type 5: Roll Forming
Forming Type 6: Stretch Forming
Tools and Equipment for Sheet Metal Forming
Safety Measures in Sheet Metal Shaping
Factors to Consider When Choosing a Right Sheet Metal Forming Processes
Cost Considerations in Sheet Metal Shaping
Future Trends in Sheet Metal Forming Processes Techniques
Conclusion

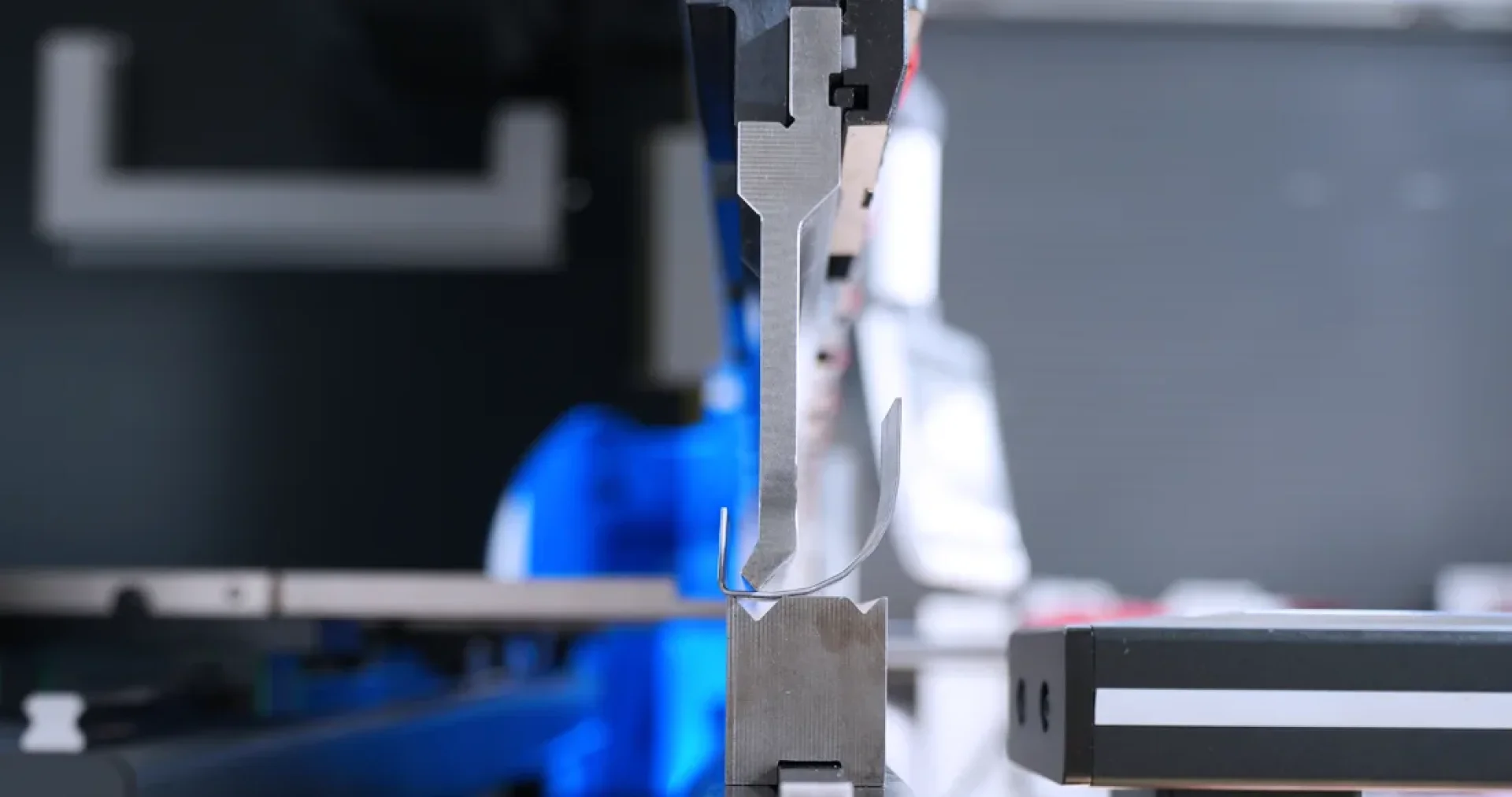

Forming Type 1: Bending
Bending is a fundamental sheet metal working process in which metal sheets are shaped along a linear reference to specific angles. It finds extensive applications in areas such as the automotive and construction industries, mainly for manufacturing brackets and frames.

Techniques
Air Bending: In this technique, the punch is positioned above the sheet without direct contact with the die face. This allows for flexible angles and minimizes tool wear.
Bottoming: Here, the sheet is pressed into the die until the required angle is achieved. Although it demands more force, it offers excellent accuracy.
Coining: This is a highly precise method where the material is forced into the die, resulting in a fine bend with minimal spring back.
Benefits
Cost-Effectiveness: The process can be conducted rapidly with low tooling costs, making it suitable for both high and low volume production.
Versatility: It can be applied to various materials like aluminum, stainless steel, and other alloys due to its flexibility.
Customizability: Bending processes enable the creation of special angles and shapes, making them useful for manufacturing specific parts.
Understanding the bending methods simplifies sheet metal manufacturing, ensuring the final product has a perfect shape and contour. This is essential for efficient operation and keeping a high standard of product quality.

Forming Type 2: Stamping
Stamping is an important sheet metal working operation that uses a die for shaping, forming, or cutting metallic sheets. It is highly preferred in the industry due to its precision, which enables the production of items such as car parts and other equipment.

Techniques
Progressive Die Stamping: This type of die has multiple stations within one die, and the parts are formed in a single cycle. It can perform both cutting and bending simultaneously and is ideal for high production volumes.
Deep Drawing: This process involves using flat metal sheets to create hollow shapes by passing them through a die. It is commonly used in industries with designs requiring uniform thickness and other complex details.
Benefits
High Precision: The use of dies allows for obtaining correct and tightly tolerance shapes, which are necessary when close tolerances are needed.
Rapid Production Rates: Stamping can produce a large number of parts in a brief time, reducing production time and increasing efficiency.
Material Efficiency: By carefully planning the cutting area to fit the required parts, stamping helps avoid material wastage, making large production runs economical.
Stamping is essential for industries involved in sheet metal fabrication of products that demand high manufacturing rates. Thanks to its speed, reliability, and flexibility, it has become the standard in mass production.

Forming Type 3: Curling
Curling is a specific sheet metal forming technique aimed at creating rolled edges or flanges. This technique involves flexing the material in a circular motion, which sometimes improves the mechanical properties of the metal, making it useful in automotive and HVAC applications.

Techniques
Single Curling: In this method, the edge of the sheet metal is curved into a smooth, rounded curvature, mainly to give the metal a less sharp edge.
Double Curling: The edge is bent twice to form a flush edge, which offers better stability and appearance. This is commonly seen in products such as cans and tubular structures.
Benefits
Improved Safety: Curling cuts the hazards associated with sharp edges, making it a crucial step in many manufacturing industries.
Enhanced Strength: Generally, curling increases the stiffness of the sheet metal, making it desirable for use in structures.
Aesthetic Appeal: From an aesthetic perspective, curling can enhance the surface of metal products, giving them a finished look.
By using curling techniques, manufacturers can produce high-quality sheet metal parts that meet both functional and safety requirements while also improving the product's appearance.

Forming Type 4: Spinning
Spinning is a specialized group of sheet metal working technologies that produce axis-symmetrical parts from a rotating metal disk or blank. It is often used in the fabrication of bowls, cones, or cylindrical components in various industries.

Techniques
Manual Spinning: In this process, a programmer manipulates the spinning tool to create patterns or shapes or for control purposes. It is commonly used for one-off or small-batch production.
CNC Spinning: CNC technology offers high accuracy and repeatability of operations. CNC spinning machines are used to produce complex shapes and are essential tools in mass production.
Benefits
Material Efficiency: The process minimizes material wastage as the entire blank material is used, and it is particularly suitable for creating lightweight parts.
Versatility: Spinning can be applied to various metals such as aluminum, brass, and stainless steel, proving its versatility.
Excellent Surface Finish: Spinning can produce surfaces that are as smooth as required and polished, cutting the need for further finishing.
Spinning is a versatile forming technique applicable in many manufacturing industries as it enables the production of correct and balanced parts, allowing designers to combine art and function in their designs.

Forming Type 5: Roll Forming
Roll forming is a process in which a strip is passed through a series of rolls arranged in stations to produce a specific shape. It effectively forms advanced geometries with precise dimensions and is highly suitable for the automotive, construction, and electrical gadget industries.

Techniques
Custom Roll Designs: In roll forming, a metal strip passes through a series of rollers that continuously shape it. Each roller contributes to forming a part of the desired profile.
Adjustable Rollers: The rollers used in the machines can be easily adjusted or replaced to create different profiles according to various applications.
Benefits
High Production Efficiency: Once installed, roll forming can generate a large number of parts in a brief time with minimal wastage, making it ideal for large-scale production.
Consistent Quality: Since the process is continuous, it offers consistent dimensions and shapes, reducing the need for post-processing.
Strength and Durability: The cold working process involved in roll forming often results in stronger parts of a given material.
Manufacturers can obtain precision-engineered products by applying roll forming, which helps various industries. This method also enhances production efficiency and is thus incredibly useful in manufacturing processes.

Forming Type 6: Stretch Forming
Stretch forming is a unique forming technique in which a metal sheet is placed over a die and stretched to larger shapes. It is highly valued in industries such as aerospace and automotive for manufacturing correct and lightweight parts.

Techniques
Contour Stretching: In this technique, a sheet is placed over a male die to buy a specific contour. It is particularly useful when shaping designs and curves with high accuracy.
Flat Stretching: The metal sheet is flattened at its edges and pulled down with even force. It is also an effective way to produce larger but thinner parts.
Benefits
Excellent Surface Finish: The stretching process provides a certain degree of matte finish, reducing the need for secondary finishing operations.
Strength and Durability: The stretching process enhances the mechanical properties of the metal, making the part lightweight yet strong.
Complex Shapes: Compared to regular forming techniques, stretch forming offers more opportunities to create unique patterns and is ideal for custom high-performance parts.
Stretch forming is used by manufacturers aiming to produce intricate and high-precision metal parts. This process meets the standards of modern engineering and design, being correct and durable in various applications.

Tools and Equipment for Sheet Metal Forming
Proper tools and machinery are essential for achieving the best results in any forming process, especially sheet metal forming. In this section, we will describe different forming tools in relation to various forming processes.
